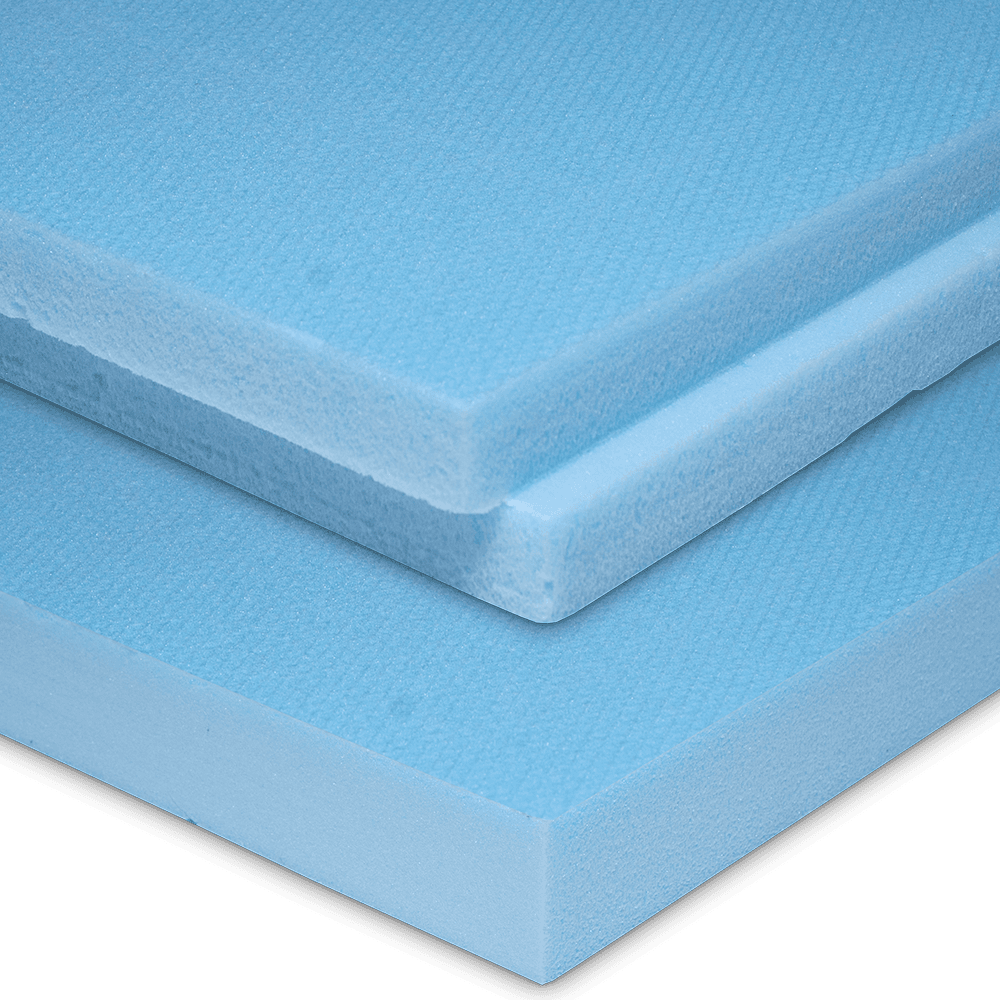

XPS ETICS EMB
Extruded polystyrene
Extruded polystyrene thermal insulation boards, used as insulation material for the External Thermal Insulation Composite System (ETICS) Thermoseal, as well as for insulation applications over pitched roofs and concrete surfaces. Available without skin, but textured (embossed) in a diamond pattern finish, providing higher adhesion and lower resistance to water vapour diffusion. Square edge panel available, with special order.
Product Details
- Panel Dimensions (cm)
125 x 60
- Packaging
Packaging
m²/Bundle Thickness mm
15,0 20
10,5 30
7,5 40
6,0 50
5,25 60
4,5 70
3,75 80
3.0 100 - Identification Code
XPS-EN13164-T2-CS(10/Y)200-DS(23,90)-WL(T)1,5 [20≤s≤80], WL(T)0,7 [s=100]-TR400 ftk>0,02 N/mm², Gm>1,0 N/mm²
- Declared value of thermal conductivity (λ)
λD=0,033 W/m*K (20-50mm) / λD=0,035 W/m*K (60-100mm)
